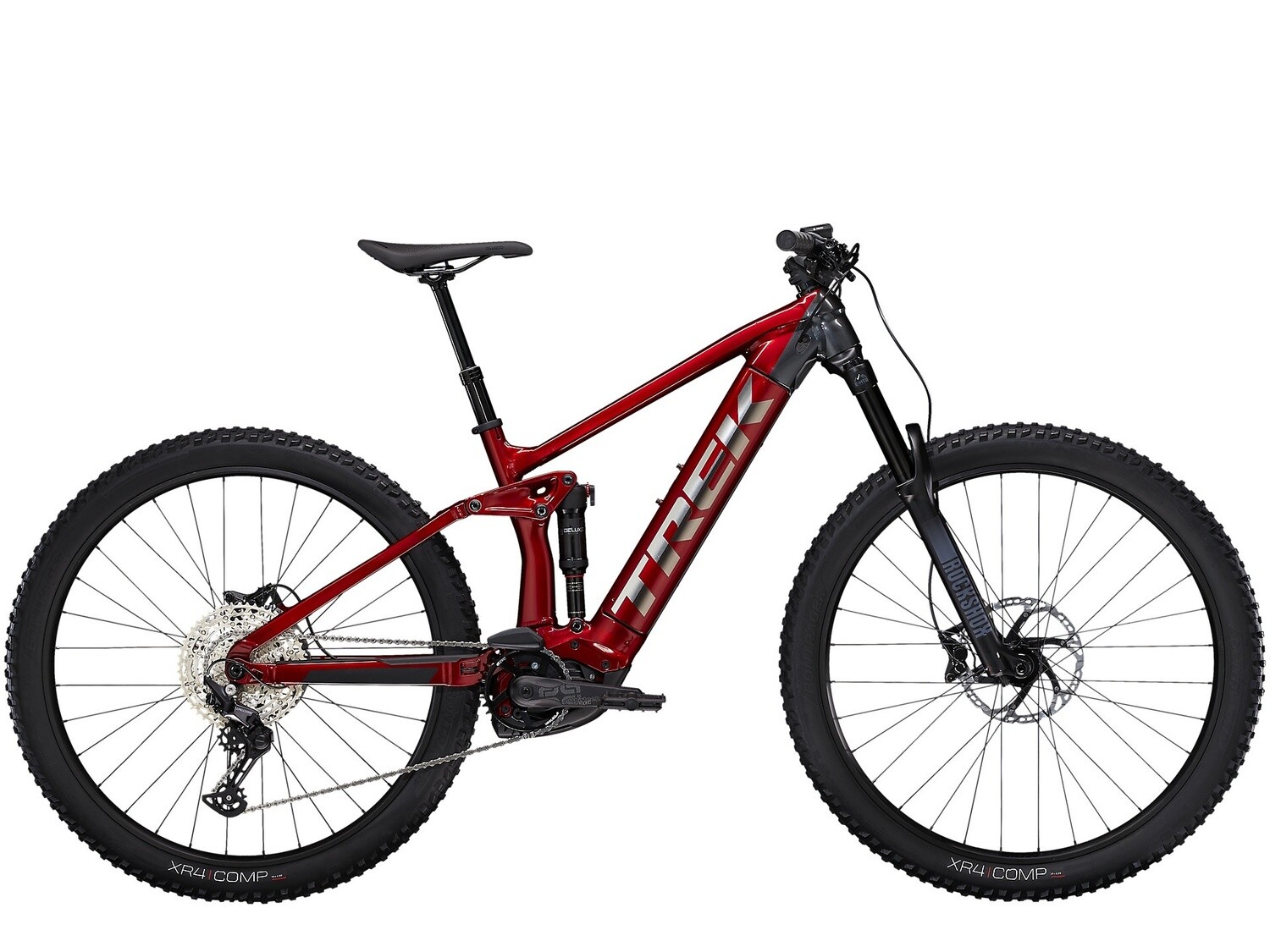

Trek Rail 5 625Wh 2022
£4,900.00
Sold out
Color
Please choose
Size
Please choose
Sold out
Product Details
Brand: Trek
The Rail 5 625 is an electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, plus a powerful new Bosch drive system that's basically like having your own shuttle.
Frameset
expand_less
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel |
|---|---|
| Max compatible fork travel | 170mm (580mm axle-to-crown) |
Wheels
expand_less
| Hub front | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve |
| Tyre | Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60" |
| Max tyre size | Frame: 29x2.60" Fork: See manufacturer |
Drivetrain
expand_less
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | E*thirteen E*spec Plus, 34T, 165 mm length |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100 |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 34T |
Components
expand_less
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| Size: S Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length |
|
| Size: M, L, XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
|
| Size: M, L, XL Bontrager Line Dropper, 125mm travel, internal routing, 31.6 mm, 395mm length |
|
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
| Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Brake rotor | Shimano RT76, 6-bolt, 203 mm |
Accessories
expand_less
| Battery | Bosch PowerTube 625 |
|---|---|
| Charger | Bosch compact 2A, 100–240V, smart system |
Weight
expand_less
| Weight | M - 23.88 kg/52.65 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
