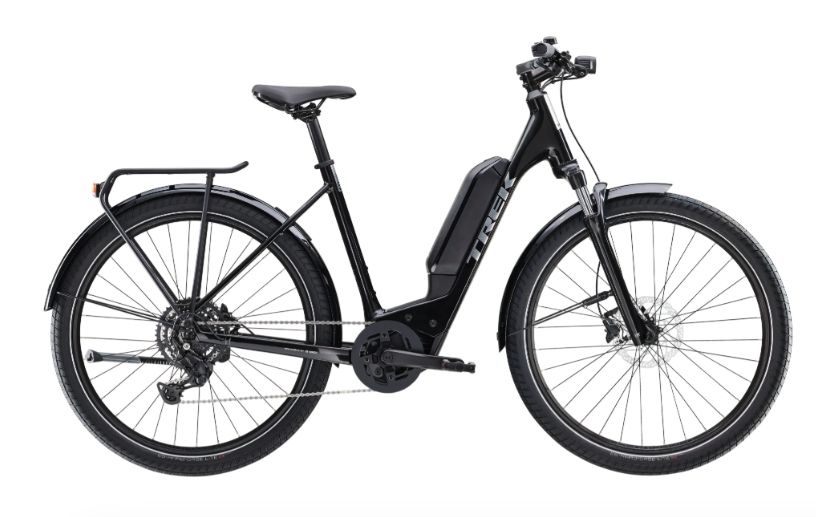

Trek Allant + 5 Lowstep
£3,225.00
Sold out
Size
Please choose
Colour
Please choose
Battery Size
Please choose
Sold out
Product Details
Brand: Trek
The Allant+ 5 Lowstep is the ultimate electric city bike for riders looking to accelerate their commute. The frame features a step-thru design that simplifies getting on- and- off and the Bosch smart system offers more connectivity than ever before, so your smart phone can communicate with your bike to log distances and plan routes. It's available with your choice of battery size, ranging from 400- to 800-watt hours, so you can take control of your commute and cruise comfortably all the whole way home.
| Frame | High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5 mm QR |
|---|---|
| Fork | SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel |
Wheels
| Hub front | Shimano Tourney HB-QC300, centerlock |
|---|---|
| Hub rear | Shimano FH-QC300-HM, 32-hole, CentreLock, 8-/9-/10-/11-speed, 135x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40" |
E-system
| Charger | Bosch standard 2A, 230V, smart system |
|---|---|
| Computer | Bosch Purion 200 |
| Motor | Bosch Performance Line CX, 20 mph (25 km/h in Europe) |
Drivetrain
| Shifter | Shimano U4000, 9-speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| *Crank | Size: S, M ProWheel alloy, 170 mm length |
| Size: L, XL ProWheel alloy, 175 mm length |
|
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | slip-proof pedals with reflectors |
Components
| Saddle | Selle Royal Vivo Moderate Ergo |
|---|---|
| *Seatpost | Size: S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: L, XL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Herrmans Clik, ergonomic, lock-on |
| *Stem | Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
| Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
| Size: L, XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: S, M, L, XL Shimano RT30, CentreLock, 180 mm |
| Size: S, M, L, XL Shimano EM300, CentreLock, 180 mm |
Accessories
| *Light | Size: S, M, L, XL Spanninga SOLO for e-bike |
|---|---|
| Size: S, M, L, XL Herrmans H-Black MR5-E, 140 Lumen, 40 Lux, LED, headlight |
|
| Kickstand | Pletscher Comp Flex 18 |
| Cargo rack | MIK-compatible alloy rear rack, maximum load 25 kg |
| *Mudguard | Size: S, M, L, XL SKS plastic, rear |
| Size: S, M, L, XL SKS plastic, front |
Weight
| Weight | M - 24.30 kg / 53.58 lbs (with 545Wh battery) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
