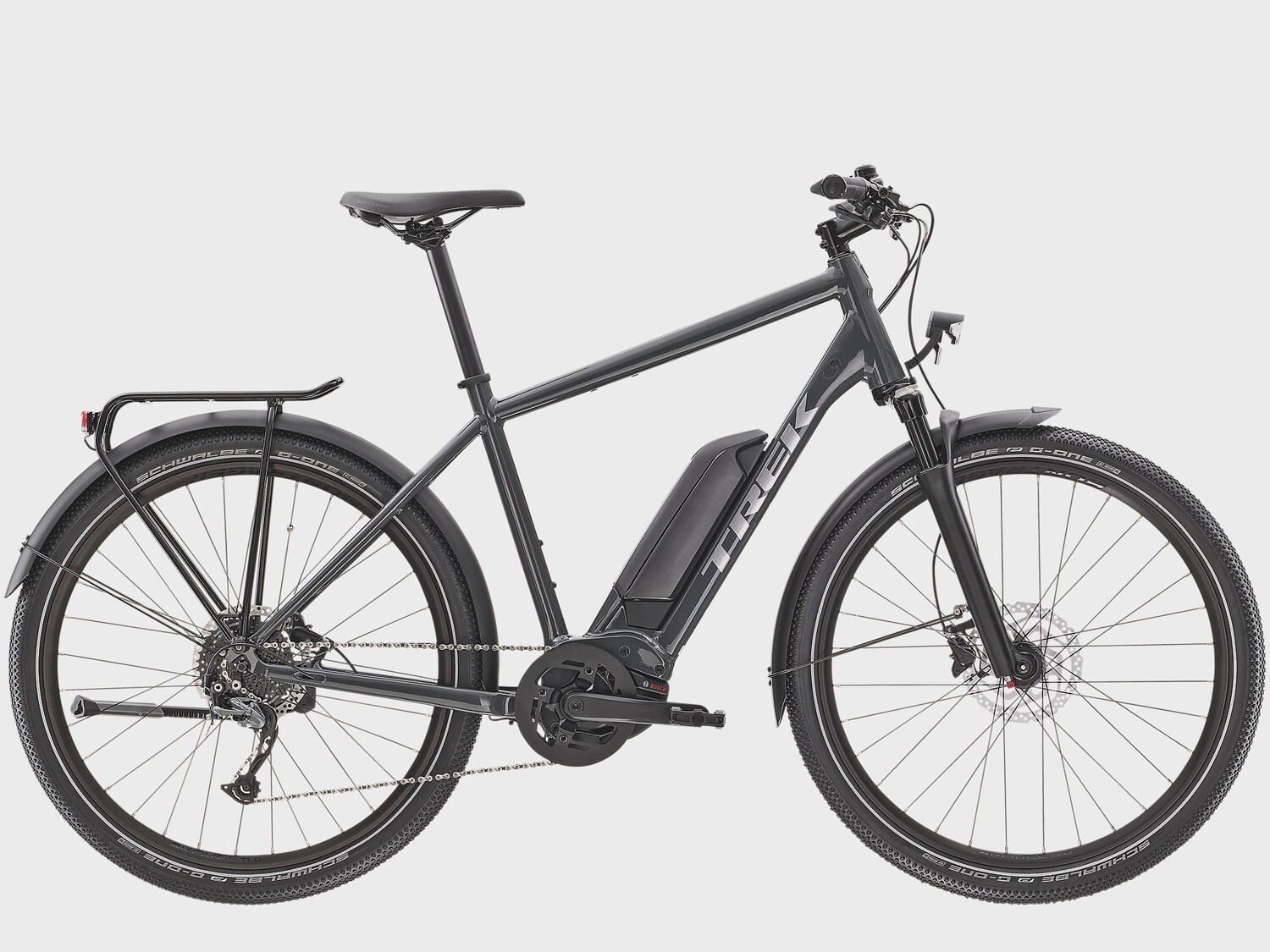

Trek Allant +5 2022
£2,995.00
Sold out
was £3,100.00 Save £105.00
Colour
Please choose
Size
Please choose
Sold out
Product Details
Brand: Trek
The Allant+ 5 is a versatile e-bike built for riders, commuters and weekend adventurers who want a powerful, comfortable electric bike at an affordable price. A reliable Bosch drive system that assists up to 20 mph (25 km/h in Europe), road-smoothing suspension fork, sturdy 27.5" wheels and thoughtful features make this electric bike a smart solution for getting around town and even exploring gravel paths.
Frameset
expand_less
| Frame | High-performance hydroformed alloy, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR |
|---|---|
| Fork | SR Suntour Mobie 25, coil spring, lockout, rebound adjust, tapered alloy steerer, 15x100 mm thru axle, 45 mm travel |
Wheels
expand_less
| Hub front | Bontrager Disc, 32-hole, 6-bolt disc, 15 mm alloy thru-axle |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 135x5 mm bolt-on |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Schwalbe G-One, 650x57 c |
Drivetrain
expand_less
| Shifter | Shimano Altus M2010, 9-speed |
|---|---|
| *Rear derailleur | Size: M, L, XL Shimano Alivio M3100, long cage |
| Size: M, L, XL Shimano Alivio M4000, long cage, 36T max cog |
|
| *Crank | Size: M ProWheel alloy, 170 mm |
| Size: L, XL ProWheel alloy, 175mm |
|
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC E9S, 9-speed |
| Pedal | VP-857 |
Components
expand_less
| Saddle | Bontrager Commuter Comp |
|---|---|
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Bontrager Satellite Elite, alloy lock-on |
| *Stem | Size: M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Size: L Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: XL Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length |
|
| Head set | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brake | Shimano MT200 hydraulic disc |
| Brake rotor | Shimano RT26, 6-bolt,180 mm |
Accessories
expand_less
| Battery | Bosch Powerpack Performance 500 downtube |
|---|---|
| Charger | Bosch standard 4A, 220–240V |
| Controller | Bosch Purion |
| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
| *Light | Size: M, L, XL Herrmans MR-GO, 100 lumen, 35 lux |
| Size: M, L, XL Spanninga SOLO for e-bike |
|
| Kickstand | Pletscher Comp Flex 18 |
| *Cargo rack | Size: M, L, XL Racktime Lightit |
| Size: M, L, XL MIK Compatible alloy rear rack |
|
| *Mudguard | Size: M, L, XL Eurofender Duo |
| Size: M, L, XL SKS plastic |
Weight
expand_less
| Weight | L - 19.20 kg / 42.33 lbs (excluding battery) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
