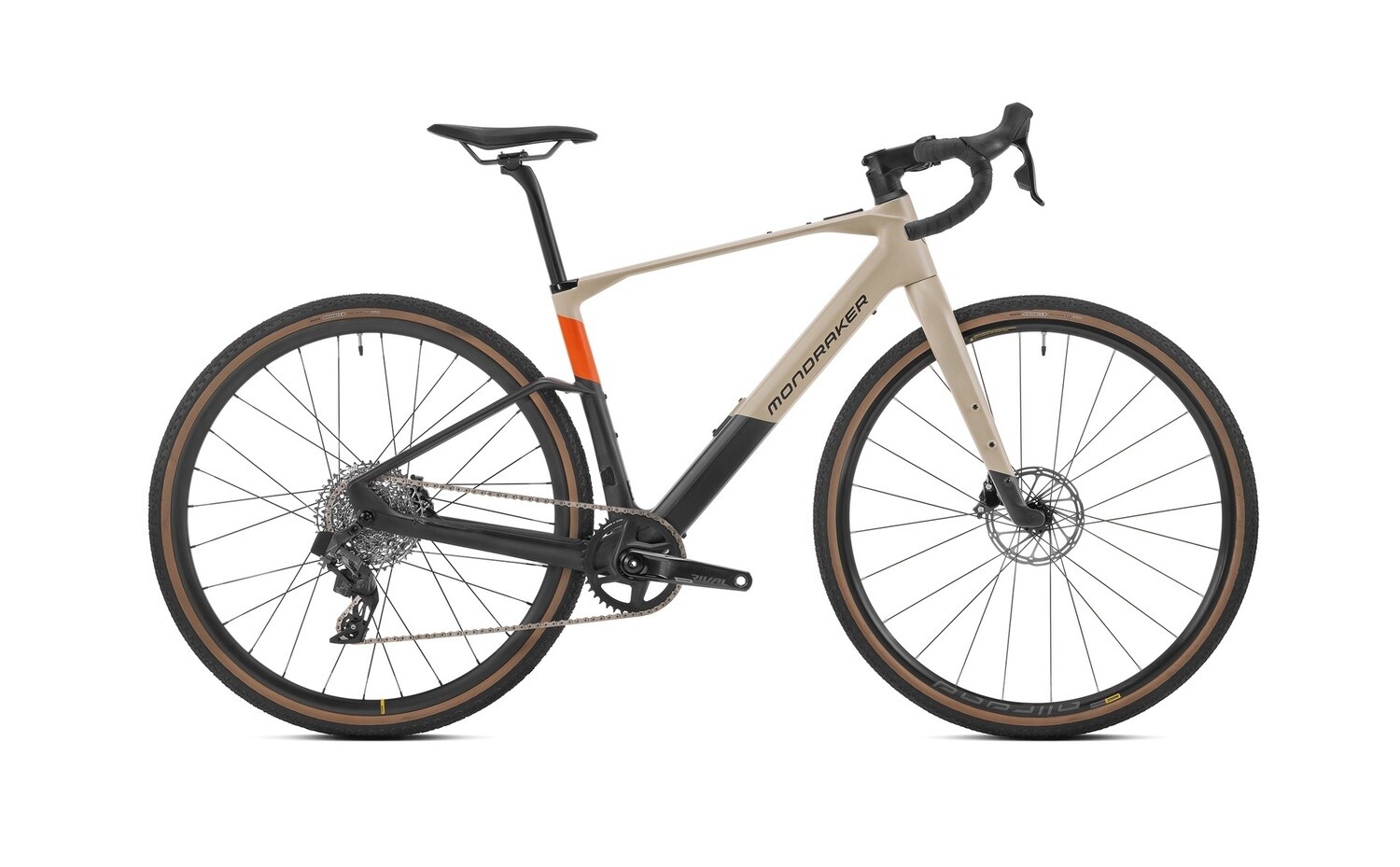

Mondraker Dusty R 2024

Frame

Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.

Sizes

S: 440mm / M: 460mm / L: 500mm / XL: 530mm

Fork

Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset

OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S: 70mm M: 70mm, L: 80mm, XL: 90mm

Handlebar

OnOff Barium gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm

Grips

Barium gravel dark grey

Seatpost

OnOff Barium gravel microadjust diameter 27.2mm, length 400mm

Saddle

FIZIK Terra Argo X7 150mm

Front brake

Sram Rival 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Rival 22, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Rival, tooled reach adjust, aluminum levers

Rims

MDK-XG1, 23mm internal width, tubeless ready, 28 spokes

Spokes

CN round stainless steel

Front hub

Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts

Rear hub

Mahle X20 Drive Unit, HG freehub

Front tire

Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall

Rear tire

Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall

Crankset

Sram Rival 1 DUB GLS DUB Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.

Rings

Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,

Bottom bracket

Mahle pressfit, sealed bearings, w/ torque sensor

Chain

Sram PC-1110, 11s, Powerlock

Rear derrailleur

Sram Rival 1, 11s

Shift levers

Sram Rival 1 11s, Exact actuation

Casette

Sram XG-1150 10-42T, 11s

Others

*Optional range extender: Mahle e185 , 172Wh

Weight

12.8 kg

Display

Pulsar One Wireless

Motor

Mahle X20 Drive Unit

Battery

Mahle X20 IX350Wh
